F280049PZSR

The F280049PZSR is a high-performance microcontroller from Texas Instruments’ C2000™ family, designed for real-time control applications. It integrates a 32-bit CPU, ample memory, and a range of advanced peripherals, making it suitable for demanding embedded systems. Here’s a detailed description of its features:

Key Features

• Core: 32-bit TMS320C28x CPU
  • High-performance core for executing complex control algorithms.
  • Operates up to 100 MHz for fast processing and real-time performance.
• Memory:
  • Flash Memory: 512 KB for storing firmware and application code.
  • RAM: 102 KB for data and temporary storage.
• Peripherals:
  • PWM Modules: Multiple Pulse Width Modulation (PWM) channels for precise motor control and signal generation.
  • Analog-to-Digital Converter (ADC): 12-bit ADC for accurate analog signal measurement.
  • Timers: Several 32-bit and 16-bit timers for time-based operations and scheduling.
  • Communication Interfaces: Includes UART, SPI, and I2C for flexible data exchange with external devices.

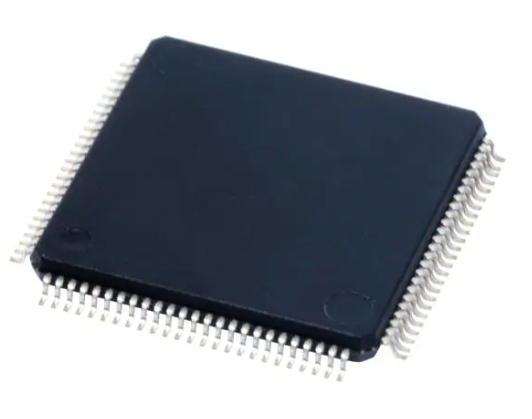

• Package: 100-pin LQFP (Low-Profile Quad Flat Package)
  • Provides a balance of I/O flexibility and compact size for space-efficient designs.

Performance

• Real-Time Processing: The high clock speed and powerful CPU enable real-time control and fast response times.
• Precision: The 12-bit ADC and PWM modules ensure high accuracy in analog measurements and signal control.
• Memory Capacity: Sufficient Flash and RAM support complex algorithms and data handling.

Features and Benefits

• High Performance: The combination of a 32-bit CPU and high clock speed provides excellent performance for demanding applications.
• Versatile I/O: A variety of peripherals and communication interfaces offer flexibility for integration with different systems.
• Compact and Flexible: The 100-pin LQFP package allows for a high level of functionality in a compact footprint.

Applications

• Motor Control: Ideal for controlling brushless DC motors, stepper motors, and servo motors.
• Industrial Automation: Suitable for programmable logic controllers (PLCs) and other industrial control systems.
• Power Management: Used in power converters and management systems requiring precise control.
• Embedded Systems: Well-suited for various embedded applications needing real-time processing and control.

The F280049PZSR microcontroller is a robust solution for applications requiring high performance, precision, and real-time control, offering a comprehensive set of features for advanced embedded systems.
