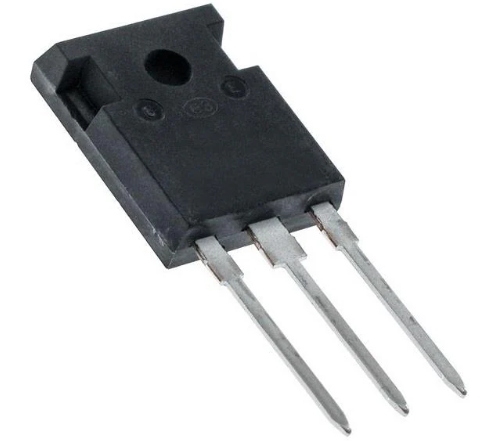

IRFP460PBF

The IRFP460PBF is a high-performance MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) designed for a wide range of power electronics applications. This device is manufactured by Infineon, a leading semiconductor company, and offers several key features and benefits.

Key Features:

1. High Power Handling: The IRFP460PBF is capable of handling high power levels, with a maximum drain-to-source voltage (Vdss) of 500V and a continuous drain current (Id) of 20A at 25°C. This makes it suitable for use in circuits that require high voltage and current capabilities.
2. Low On-Resistance: The on-resistance (RDS(on)) of the IRFP460PBF is low, with a maximum value of 0.27Ω at a gate-to-source voltage (VGS) of 10V and a drain current (Id) of 12A. This low RDS(on) helps to minimize power losses and improve efficiency in power conversion circuits.
3. Fast Switching Speed: The IRFP460PBF has a fast switching speed, which is essential for high-frequency applications. The turn-on and turn-off delays are short, allowing the device to switch quickly between on and off states.
4. Lead-Free Packaging: The IRFP460PBF is packaged in a lead-free, environmentally friendly TO-247AC package. This makes it suitable for use in applications that require compliance with RoHS (Restriction of Hazardous Substances) directives.
5. Ease of Use: The IRFP460PBF is easy to use and integrate into power electronics circuits. It has a simple drive circuit requirement and is easy to parallel for increased current handling capability.

Applications:

The IRFP460PBF is suitable for a wide range of power electronics applications, including:

• Switch-mode power supplies (SMPS)
• DC-DC converters
• Motor control circuits
• Inverter circuits
• Uninterruptible power supplies (UPS)

General Specifications:

• Drain-to-Source Breakdown Voltage (V(BR)DSS): 500V
• Continuous Drain Current (Id): 20A at 25°C
• On-Resistance (RDS(on)): 0.27Ω max. at VGS = 10V, Id = 12A
• Gate Threshold Voltage (VGS(th)): 2.0V to 4.0V
• Package: TO-247AC, lead-free

In summary, the IRFP460PBF is a high-performance MOSFET that offers high power handling, low on-resistance, fast switching speed, and lead-free packaging. It is suitable for a wide range of power electronics applications and is easy to use and integrate into circuits.
