MAX232ESE+

The MAX232ESE+ is a dual RS-232 line driver/receiver from Maxim Integrated, designed to interface between TTL/CMOS logic levels and RS-232 serial communication levels. It is widely used in applications requiring serial data communication while providing reliable signal conversion and enhanced performance. Here are the key features and specifications:

1. Function:
   • RS-232 Line Driver/Receiver: Converts TTL/CMOS logic levels to RS-232 levels and vice versa, enabling communication between devices with different voltage levels.
2. Transmitter/Receiver:
   • Dual Drivers and Receivers: Includes two RS-232 drivers and two receivers, supporting full-duplex communication.
3. Operating Voltage:
   • Supply Voltage: Operates from a single 5V supply, which is standard for many RS-232 applications.
4. Data Rate:
   • High-Speed Operation: Supports data rates up to 120 kbps, suitable for a variety of serial communication tasks.
5. ESD Protection:
   • Enhanced ESD Protection: Features integrated protection for up to ±15 kV on the RS-232 pins, providing reliable operation in environments prone to electrostatic discharge.
6. Low Power Consumption:
   • Low Power: Designed to consume minimal power, which is advantageous for battery-operated and portable devices.
7. Package:

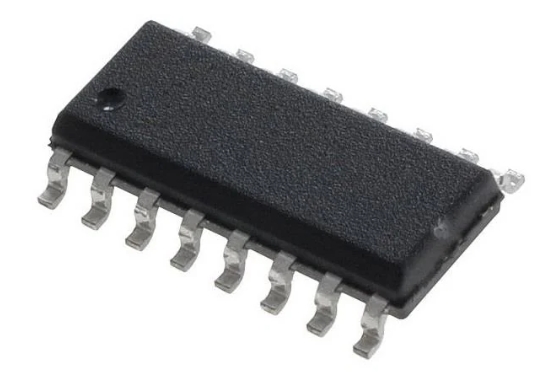

   • Package Type: Available in an 16-pin SOIC (Small Outline Integrated Circuit) package, which is compact and easy to mount on PCBs.
8. Additional Features:
   • Charge Pump: Integrates a charge pump circuit to generate the required RS-232 voltage levels from a single 5V supply, eliminating the need for external voltage sources.
   • High-Performance: Designed for high-speed data transmission with minimal signal distortion.
9. Applications:
   • Serial Communication: Used in various devices for serial communication, including PCs, peripherals, industrial controllers, and communication equipment.
   • Data Interfaces: Ideal for interfacing TTL/CMOS logic systems with RS-232 communication systems in various electronic applications.

The MAX232ESE+ is a reliable and efficient solution for RS-232 serial communication, providing robust signal conversion, high-speed operation, and enhanced ESD protection in a compact and easy-to-integrate package.
