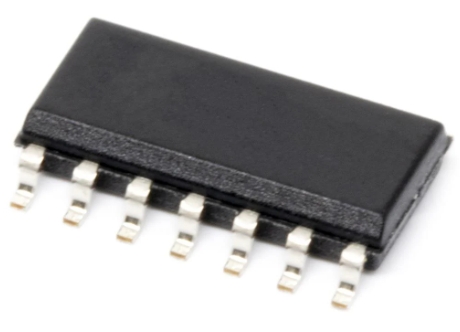

MCP6004T-I/SL

The MCP6004T-I/SL is a quad operational amplifier (op-amp) from Microchip Technology, designed for general-purpose analog signal processing. Here is a detailed description of its key features:

Key Features

• Type: Quad Operational Amplifier
• Number of Channels: Four independent op-amps in a single package
• Gain-Bandwidth Product: Typically 1 MHz, providing a good balance between gain and frequency response
• Input Offset Voltage: Low input offset voltage for improved accuracy in signal amplification
• Output Drive: Capable of driving loads with minimal distortion and high fidelity
• Package Type: Available in an 14-pin SOIC (Small Outline Integrated Circuit) package for compact and easy integration

Performance

• Low Noise: Designed with low noise characteristics, making it suitable for precise signal amplification and filtering
• Low Power Consumption: Operates with low power consumption, enhancing energy efficiency and extending battery life in portable devices
• Wide Operating Voltage Range: Operates over a wide voltage range, typically from 1.8V to 6.0V, providing flexibility in power supply design

Features and Benefits

• Versatile Application: Suitable for a wide range of analog signal processing applications, including signal amplification, filtering, and voltage buffering
• Precision Performance: Offers high precision with low offset voltage and low noise, ensuring accurate signal processing
• Compact Design: The SOIC package allows for efficient use of PCB space, making it ideal for compact electronic designs

Applications

• Consumer Electronics: Used in audio equipment, sensors, and other consumer electronic devices for signal processing
• Industrial Equipment: Applied in industrial control systems, instrumentation, and measurement equipment
• Medical Devices: Suitable for medical instrumentation where precision and low noise are critical
• Automotive Systems: Utilized in automotive electronics for signal conditioning and processing

The MCP6004T-I/SL provides versatile and reliable performance for a wide range of analog signal processing tasks, making it a valuable component for various electronic applications requiring precision and low power consumption.
