OP295GSZ-REEL7

The OP295GSZ-REEL7 is a dual operational amplifier from Analog Devices Inc. (ADI), specifically designed for single-supply applications. It combines the advantages of rail-to-rail output swing with high dc accuracy, making it an ideal choice for a wide range of analog circuits.

Key Features:

1. Rail-to-Rail Output Swing:
   • The OP295GSZ-REEL7 features rail-to-rail output swing, which means it can swing its output voltage from the positive supply rail to the negative supply rail. This allows for maximum signal utilization and minimizes distortion in the output signal.
2. High Dc Accuracy:
   • With high dc accuracy, the OP295GSZ-REEL7 provides precise amplification and signal conditioning. This is particularly important in applications where accuracy and stability are critical, such as precision measurement and control systems.
3. Single-Supply Operation:
   • The OP295GSZ-REEL7 is designed for single-supply operation, which simplifies power supply design and reduces component count. It can operate from a single supply voltage ranging from 3V to 36V, making it suitable for a variety of low-voltage applications.
4. Low Power Consumption:
   • The OP295GSZ-REEL7 consumes low power, making it suitable for battery-powered devices and other power-sensitive applications.
5. High Gain Bandwidth Product:
   • The gain bandwidth product of the OP295GSZ-REEL7 is sufficient for many general-purpose analog applications. This allows it to amplify high-frequency signals with minimal distortion.
6. Stable Operation:
   • The OP295GSZ-REEL7 is designed for stable operation, even with capacitive loads. This makes it suitable for driving loads such as speakers and other reactive loads.
7. Package and Availability:

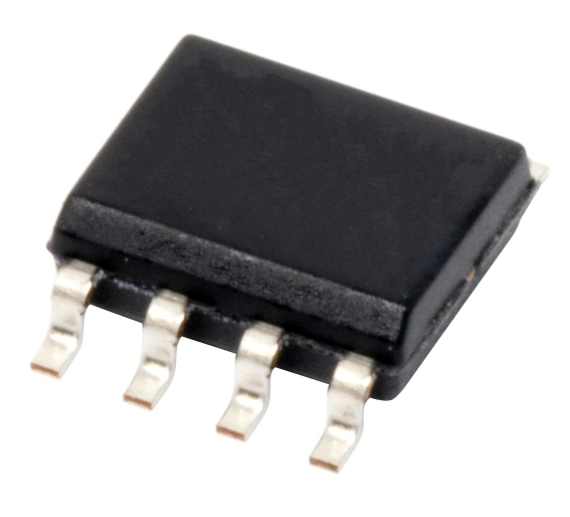

   • The OP295GSZ-REEL7 is available in an SOIC-8 package, which is compact and easy to integrate into circuits. It is supplied on a reel, making it suitable for automated assembly processes.

Applications:

Due to its key features and benefits, the OP295GSZ-REEL7 is suitable for a wide range of applications, including but not limited to:

• Audio amplification and processing
• Battery-powered instruments and devices
• Sensor signal conditioning
• Precision measurement and control systems
• General-purpose analog circuits requiring low power and high accuracy

Conclusion:

In summary, the OP295GSZ-REEL7 is a versatile and reliable dual operational amplifier from Analog Devices. Its rail-to-rail output swing, high dc accuracy, single-supply operation, and low power consumption make it an ideal choice for a wide range of analog circuits. Its compact SOIC-8 package and availability on a reel further enhance its ease of use and integration into circuits.
