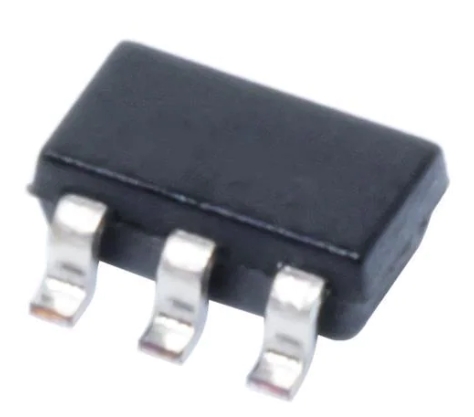

SN74LVC2G14DBVR

The SN74LVC2G14DBVR is a dual Schmitt-trigger inverter from Texas Instruments, designed for high-speed logic-level translation and signal conditioning. It features:

1. Schmitt-Trigger Inputs: Provides hysteresis for noise immunity and ensures clean transitions with noisy or slow input signals.
2. Dual Inverters: Contains two independent inverters in a single package, allowing for flexible use in various circuit designs.
3. Wide Voltage Range: Operates over a wide supply voltage range of 1.65V to 5.5V, making it suitable for both low-voltage and standard logic systems.
4. High-Speed Operation: Supports high-speed operation, with a typical propagation delay of just a few nanoseconds, making it ideal for timing-sensitive applications.
5. Low Power Consumption: Designed with low power dissipation, ensuring efficient operation in battery-powered and portable devices.
6. Small Package Size: Available in a compact SOT-23-6 package, the SN74LVC2G14DBVR is well-suited for space-constrained applications.
7. Applications:
   • Signal Conditioning: Ideal for improving signal integrity in systems with noisy or slow input signals.
   • Logic Level Shifting: Suitable for converting logic levels between different voltage domains.
   • Timing Applications: Can be used in clock and timing circuits requiring precise signal control.

The SN74LVC2G14DBVR is a versatile component commonly used in digital systems requiring reliable signal processing and noise immunity.
