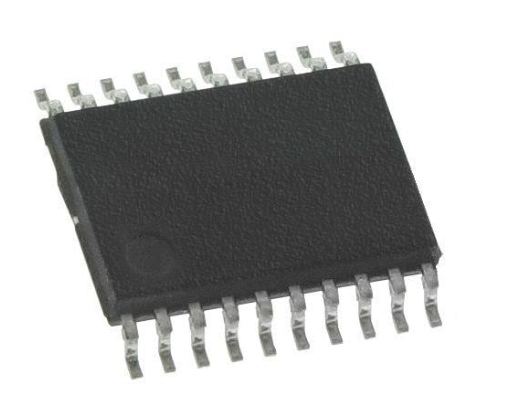

STM32G030F6P6TR

The STM32G030F6P6TR is a high-performance 32-bit microcontroller based on the ARM Cortex-M0+ RISC core, operating at a frequency of up to 64 MHz. This microcontroller is designed for a wide range of applications in consumer, industrial, and appliance domains, as well as for Internet of Things (IoT) solutions.

The STM32G030F6P6TR features 32 Kbytes of Flash memory and 8 Kbytes of SRAM, providing ample storage for program code and data. It also includes a Memory Protection Unit (MPU) for enhanced security, as well as DMA for efficient data transfer. The microcontroller offers a comprehensive set of system functions, enhanced I/Os, and peripherals, making it highly versatile and adaptable to various applications.

In terms of communication interfaces, the STM32G030F6P6TR provides standard interfaces such as two I2C buses, two SPIs (one of which can be configured as I2S), and two USARTs. It also includes a 12-bit ADC with up to 19 channels, a low-power RTC, an advanced control PWM timer, four general-purpose 16-bit timers, two watchdog timers, and a SysTick timer.

Operating within an ambient temperature range of -40 to 85°C and with supply voltages from 2.0 V to 3.6 V, the STM32G030F6P6TR is suitable for a variety of environments. Its optimized dynamic consumption combined with a comprehensive set of power-saving modes allows for the design of low-power applications. Additionally, the VBAT direct battery input allows the RTC and backup registers to remain powered even when the main power is off.

The STM32G030F6P6TR comes in a tape-and-reel packaging format, making it ideal for automated assembly processes. It is also compliant with the EcoPack 2 standard, ensuring environmental responsibility throughout its lifecycle.

Overall, the STM32G030F6P6TR is a powerful and versatile microcontroller that offers a high level of integration, making it suitable for a wide range of applications in various domains.
