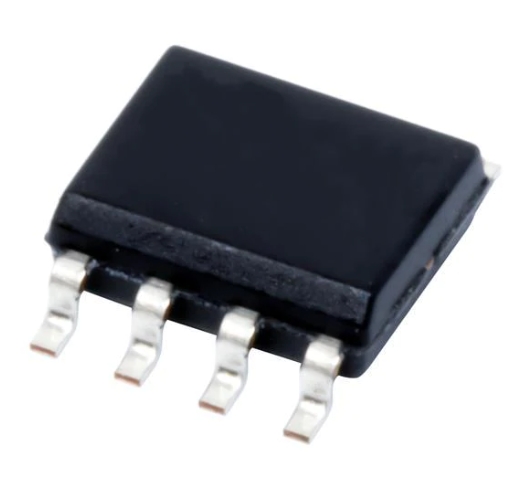

XTR115UA/2K5

The XTR115UA/2K5 is a precision current transmitter from Texas Instruments, designed to convert a voltage signal into a proportional current output. It is commonly used in industrial applications where accurate signal transmission over long distances is required. Here is a detailed description of its key features:

Key Features

• Type: Precision Current Transmitter
• Input Voltage Range: Designed to accept a range of input voltages and convert them into a proportional current output
• Output Current Range: Typically provides a standard current output of 4 mA to 20 mA, suitable for industrial signal transmission
• Accuracy: High accuracy with low offset voltage and low drift, ensuring precise current output
• Power Supply Voltage: Operates with a wide supply voltage range, typically from 10V to 40V, providing flexibility in power supply design
• Package Type: Available in an 8-pin SOIC (Small Outline Integrated Circuit) package, offering a compact and space-efficient design

Performance

• Precision: Features high precision with low total error, making it suitable for applications requiring accurate current measurement and control
• Low Power Consumption: Designed for low power consumption, contributing to energy efficiency in the overall system
• Temperature Stability: Maintains stable performance across a wide temperature range, ensuring reliable operation in various environmental conditions

Features and Benefits

• Signal Conversion: Effectively converts voltage signals into current signals, which are less susceptible to noise and signal degradation over long distances
• Compact Design: The SOIC package allows for easy integration into compact and space-constrained designs
• Industrial Applications: Ideal for use in industrial automation and process control systems where accurate signal transmission is crucial

Applications

• Industrial Automation: Used for signal transmission in industrial control systems, process monitoring, and automation equipment
• Process Control: Suitable for converting sensor signals into current outputs for process control applications
• Measurement Systems: Applies to measurement systems where voltage-to-current conversion is needed for accurate data transmission
• Remote Sensing: Ideal for remote sensing applications where current signals are preferred for long-distance transmission

The XTR115UA/2K5 is designed to provide precise and reliable current transmission, making it a valuable component for various industrial and control applications where accurate signal conversion and transmission are essential.
